3 in 1 Hot Filling Machine

Chiny 3 in 1 Hot Filling Machine dostawca
3 in 1 Hot Filling Machine dostawca 3 in 1 Hot Filling Machine dostawca 3 in 1 Hot Filling Machine dostawca 3 in 1 Hot Filling Machine dostawca

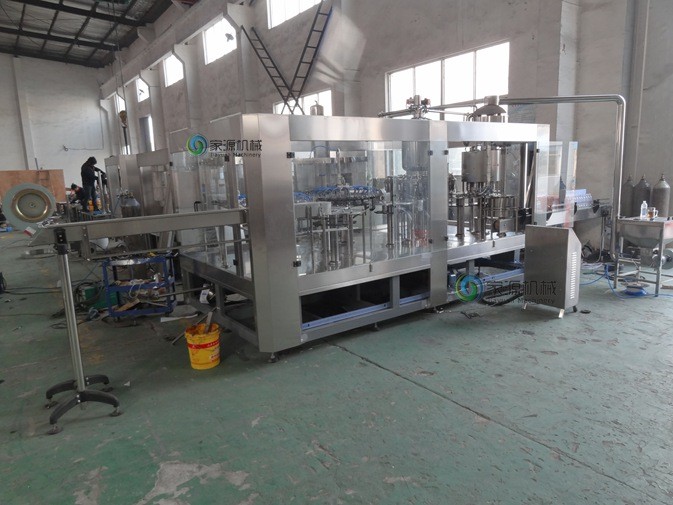

Duży Obraz :  3 in 1 Hot Filling Machine

Szczegóły Produktu:

Place of Origin: China Mainland
Nazwa handlowa: Jiayuan
Orzecznictwo: CE,SGS
Model Number: RCGF24-24-8

Zapłata:

Minimum Order Quantity: 1 set
Cena: 45000USD
Packaging Details: Seaworthy Wooden Case
Delivery Time: 30 days
Payment Terms: T/T; L/C
Supply Ability: 15 sets/month
Verified Supplier

China Mainland

  • Product Details
Szczegółowy opis produktu
Application: Juice Automatic Grade: Automatic
Bottle type: PET Capacity: 8000 BPH
Driven Type: Electric Function: 3 in 1
Product name: Hot Filling Machine
High Light:

Liquid Filling Machine

,

Bottle Filling Equipment



3 in 1 Monoblock Hot Filling Machine 8000 BPH For Round PET Bottle





Quick Detail:



  1. Model: RCGF24-24-8
  2. Capacity: 8000-10000BPH@0.5L bottle
  3. Seller: Jiayuan
  4. Designed applicable bottle: 0.2L-2L round PET bottle
  5. Designed applicable cap: plastic screw cap.
  6. Application: Juice, energy drink, tea beverage etc. hot filling.
  7. Customizable
  8. Easy operate for changing different bottle volume.
  9. 1 Year warranty
  10. Full automatic, No bottle no filling, No cap machine stop.
  11. CE & SGS Certificate
  12. Hot juice filling machine

Automatic SS304/316 RCGF24-24-8 Hot Juice Filling Machine RFC 3-in-1 Monoblock





Description:



RINSING SECTION

3 in 1 Hot Filling Machine 0

Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.

Rinsing machine adopts original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.

Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° angle ensures to wash all side of the bottle, and can save the water.

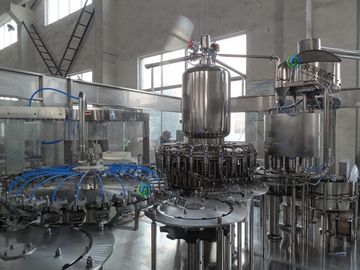

FILLING SECTION

3 in 1 Hot Filling Machine 1

The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm.

The filling valve material is SUS304

The filling system has liquid level automatic control.

Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck ,it start to fill.

Bottle is conveying by the wheel in the filling part.

The juice or other hot beverage can be backflow by return tank to control filling temperature.



CAPPING SECTION

3 in 1 Hot Filling Machine 2

Screw capping machine is most precision part in the 3-1 machine, it has a big influence to the goods stability and defective rate. Our screw capping has following feature.



Equipment structure

  • Base
  • Rotary rinser
  • Rotary filler
  • Rotary capper
  • Bottle infeed and outfeed system
  • Control



 Main configuration

3 in 1 Hot Filling Machine 3

  • Touch screen: THINGET
  • PLC program controller: Mitsubishi
  • Inverter: Mitsubishi
  • Photoelectrical controller: Omron
  • Proximity switch: Omron
  • Other electrical components: Schneider
  • Pneumatic component: Airtac
  • Water pump: Nanfang
  • Main motor: Siemens
  • Bearing: Harbin





Applications:



3 in 1 Hot Filling Machine 4

1. Energy drink

2. Juice filling with normal(20-30℃), middle(50-60℃) or high temperature(85-95℃)

3. Pure water/mineral water/portable water

4. Tea beverage



Specifications:

Model

RCGF24-24-8

Capacity:500ml

8000-10000b/h

Suitable Bottle:

Height: 150-310(mm)

Diameter: φ50-φ92(mm)

Suitable Cap:

Plastic Screw Cap

Filling Pressure:

0.6Mpa

Power

9.08kw

Size

3480×2080×2280mm

Weight

4000kg





Competitive Advantage:



  1. Reasonable structured storage hopper and material supply system make the material in constant flow speed, constant pressure without frothing. Usually high position tank is adopted.
  2. Full filling to avoid the liquid level from sinking after the bottle cooling down, and to decrease the dissolved oxygen to the utmost extent.
  3. Perfect CIP system.
  4. Sanitary filling head system is of umbrella structure, high filling speed.
  5. The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.
  6. Perfect filling temperature control system.
  7. Recirculation tank system has the function of supplying the material automatically.
