PVC Film Shrink Labeling Machine

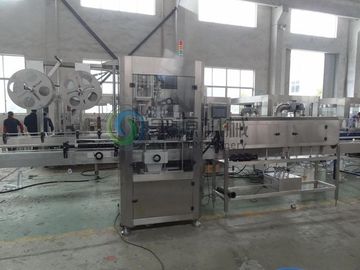

Duży Obraz : PVC Film Shrink Labeling Machine

Szczegóły Produktu:

Place of Origin:	China Mainland
Nazwa handlowa:	Jiayuan
Orzecznictwo:	CE,SGS
Model Number:	WD –S350

Zapłata:

Minimum Order Quantity:	1 set
Cena:	Negotiation
Packaging Details:	Seaworthy Wooden Case
Delivery Time:	40 days
Payment Terms:	T/T; L/C
Supply Ability:	5 sets/month

Kontakt

Verified Supplier

China Mainland

Product Details

Szczegółowy opis produktu

Applied Material:	PVC, PET, OPS	Automatic Grade:	Auto
Bottle type:	PET	capacity:	20000bph
Driven Type:	Electric	Power:	3Kw
Product name:	Shrink Labeling Machine
High Light:	shrink sleeve labeling machine , automatic labeling machine

3Kw Shrink Labeling Machine PVC Film 20000bph For Round Bottle

Quick Detail:

1. Product: Auto Sleeve Shrink Machine

2. Model:WD –S350

3. Main Material: SS304

4. Production capacity: 20000bph(500ml)

5. Usage: Labeling machine

6. Warranty: 1year free

Auto Sleeve Shrink Machine Auto

Description:

Auto Sleeve Shrink Machine

1) The machine is made of stainless steel and high quality Aluminum alloy, structure in reason, tighten, adjustment conveniently.

2) Not need ground feet bolts, move conveniently, flexible assort production field.

3) Shrink film volume label frame, according to different volume label paper pipe adjusted range 5”-10”.

4) Transmission machine can be adjusted conveniently without tools, which make is more suitable for different bottle sizes.

5) Forced insertion design proves to be reasonable and convenient.

6) The system of cutting volume label ensures last error.

7) Special designed knife plate is changed free with the related specifications.

8) Newel nip system makes change and installation rapid without tools.

9) Disport bottle screw, located strap, transport chain adopts synchronization adjust model, adjust facility.

10) Introduce Japanese servo motor and high-delicacy photo electricity, the length of cutting label is precise.

Flow Chart : PVC Label --->Shrink labeling machne ---> shrink tunnel ---> steam generator ---> Finish

Machine parameter

Input Power	3KW
Input Voltage	3 Phase, 380/220VAC
Production Efficiency	21,000-24,000b/h
Size of Host Machine(mm)	2100L1,100W2,200H
Applicable Diameter of Bottle Body	dia.28mm-125mm
Applicable Length of Label	30 mm~180mm
Applicable Thickness of Label	0.03 mm~0.13 mm
Applicable Internal Diameter of Paper Tube	5″~10″adjust it at will

Applicable Bottle Types

Various kinds of bottle types, for example; round bottle, square bottle, flat bottle, curved bottle and cup-oshaped,

etc.

Pictures:

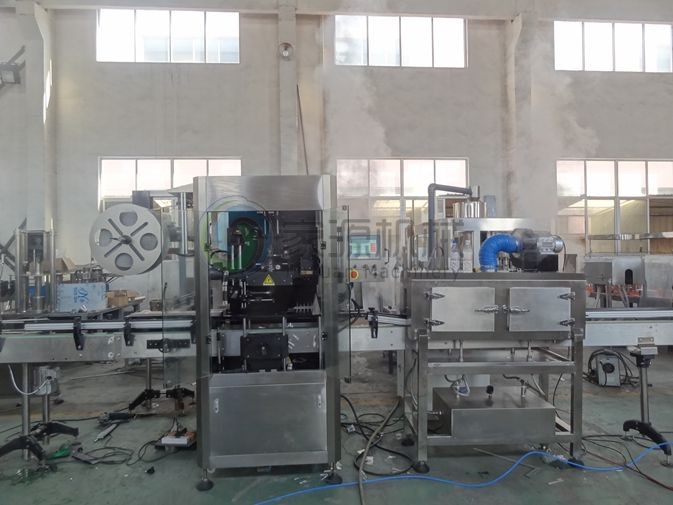

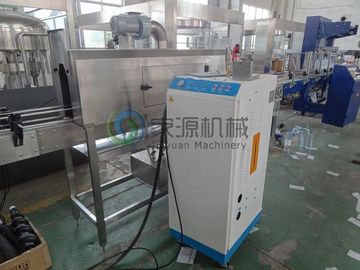

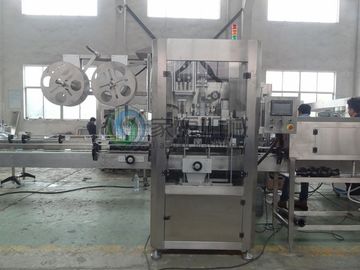

PVC Film Shrink Labeling Machine 0

Main technical parameters:

Electrical Source	3&380/220VAC
Power	3KW
Dimension	200010002150(mm)
Packing Speed	350BPM(MAX)
Bottle Dimension	28-125*300(H)mm
Label Thickness	0.04-0.07mm
Applied Material	PVC PET OPS
Label thickness	30-250mm(MAX)
Total Weight	450kg

Competitive Advantage:

Jiayuan machinery co.,ltd is a professional manufacture of liquid packaging equipment.

1. The company around 110 KM away from Shanghai, has convenient traffic.

2. The company was established in 1999, has rich experience.

3. We are an CE&SGS certified company.

4. We can produce kind of filling&packing machine, such as

Bottled water production line
Carbonated soft drinks production line
Hot-fill juice and tea production line
5 Gallon bottled water production line
Water treatment machine and packing machine

5. Jiayuan machinery co.,ltd can provide turn-key services for customers, from plant layout, equipment manufacturing, production line setup and operators training.
