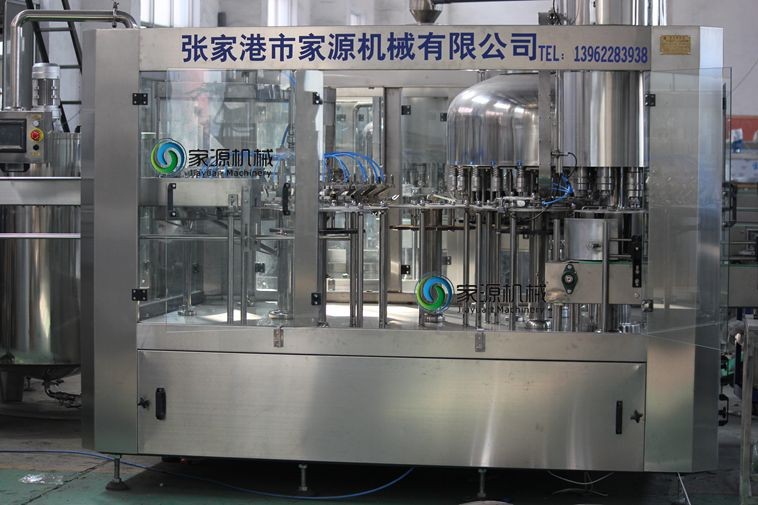

Automatic Bottle Filling Machine For Beverage

Chiny Automatic Bottle Filling Machine For Beverage dostawca
Automatic Bottle Filling Machine For Beverage dostawca Automatic Bottle Filling Machine For Beverage dostawca Automatic Bottle Filling Machine For Beverage dostawca Automatic Bottle Filling Machine For Beverage dostawca

Duży Obraz :  Automatic Bottle Filling Machine For Beverage

Szczegóły Produktu:

Place of Origin: China Mainland
Nazwa handlowa: Jiayuan
Orzecznictwo: CE,SGS
Model Number: CGF24-24-8

Zapłata:

Minimum Order Quantity: 1 set
Cena: 23000
Packaging Details: Seaworthy Wooden Case
Delivery Time: 30 days
Payment Terms: T/T; L/C
Supply Ability: 10 sets/month
Verified Supplier

China Mainland

  • Product Details
Szczegółowy opis produktu
Application: Liquid|Soda|Beverage|Juice Automatic Grade: Auto
Bottle Type: PET|Can Capacity: 10000 BPH
Driven Type: Ectric|PLC Filling head: 24 pcs
Material: SS304 Product name: Water Filling Machine
Washing head: 24 pcs
High Light:

water bottling machine

,

water bottling equipment

Automatic Bottle Filling Machine For Beverage



Quick Detail:



1. Product: 10000bph mineral water filling machine price

2. Model:CGF24-24-8

3. Main Material: SS304

4. Production capacity: 8000-10000bph(500ml)

5. Usage: Fill pure/mineral/distilled water and so on

6. Dimension: 2750*2180*2200mm

7. Warranty: 1year free

10000bph mineral water filling machine price





Description:



(1) This Water Processing Line is mainly used for washing, filling and capping PET bottle which can fill non- carbonated drinks such as mineral water, pure water, and wine and so on.

(2) Washing, filling and capping of the Water Processing Line are achieved in one machine. Water Processing Line.

(3) The contact time is shortening between material and the outside. And improved the health conditions, production capacity and economic benefits.

(4) CGF series Water Processing Line adopts hanging type conveying-bottle structure to make changing bottle mold more convenient, faster and more laborsaving.

(5) The main Water Processing Line adopts advanced PLC control technology.

(6) The key electric elements adopt Mitsubishi, Omron, Siemens, etc international famous products. Water Processing Line





Application:


This machine is designed for bottling non-air drinks, such as pure water, mineral water etc, it
integrates bottle washing, filling and capping into one monobloc unit.





Specifications:



  1. Feature

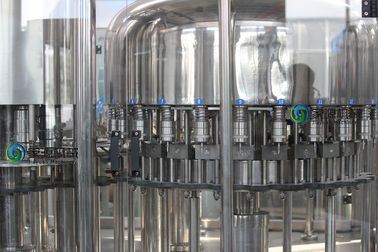

Washing part



Automatic Bottle Filling Machine For Beverage 0

The bottle is blew into the bottle shifting wheel, when the flushing clamp reaches the bottle neck, the jaw will clamp the bottleneck, under the guidance of the rail, the clamp will turn the bottle 180°into an upright position, through second bottle pusher into the filling position.

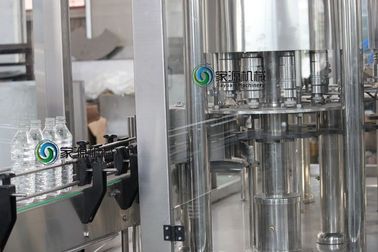

Filling Part



Automatic Bottle Filling Machine For Beverage 1

The filling part is manly composed of a filling valve and filling transmission parts. The washed bottle reaches the filling position via the bottle shifting wheel. In the mean time, the bottle clamping plate of the filling machine will clamp the bottle and move up to seal the bottle, filling valve will open, send the liquid into the bottle. When the liquid level of the bottle reaches the trachea of the filling valve, the filling will stop.



Capping Part



Automatic Bottle Filling Machine For Beverage 2

The capping part consists of screw heads, capping transmission part, a sorting part and an under cover tube parts. The bottle which has finished filling will enter the capping position via the driving wheel. The photoelectric detection of the detecting signal detects the bottle, send a message to the valve cover, the cylinder cap will open; the caps will be blown into the cover plate by compressed air. The screw head which has magnetic torque will come down when it gets in a straight line with the bottle cap, the rotary cap ring gear seizes the cap and move forward, the cap lid the bottle and screw. When the torque out numbered the adjusted magnetic, the capping head will automatically slip, thus protect the cap from being damaged by the rotary cap ring gear. Bottles that have finished capping will be transported by the bottle pusher to the conveyor belt.



2) Technical parameter



Model

CGF24-24-8

Material

SS304

Pump

Nanfang(China famous brand)

PLC

Mitsubishi

Frequency converter

MITSUBI

Washing head

24pcs

Filling head

24pcs

Capping head

8pcs

Water consumption for bottle

2500kg/h

Total power

6.57kw

Total weight

5500kg





3) Pictures:

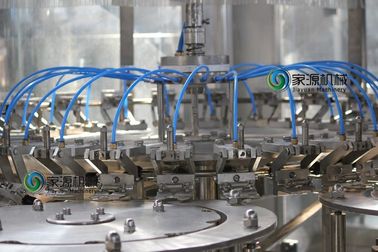

Washing head



Automatic Bottle Filling Machine For Beverage 3



Filling head



Automatic Bottle Filling Machine For Beverage 0



Capping head



Automatic Bottle Filling Machine For Beverage 2





Competitive Advantage:



Jiayuan machinery co.,ltd is a professional manufacture of liquid packaging equipment.

1. The company around 110 KM away from Shanghai, has convenient traffic.

2. The company was established in 1999, has rich experience.

3. We are an CE&SGS certified company.

4. We can produce kind of filling&packing machine, such as

  1. Bottled water production line
  2. Carbonated soft drinks production line
  3. Hot-fill juice and tea production line
  4. 5 Gallon bottled water production line
  5. Water treatment machine and packing machine

5. Jiayuan machinery co.,ltd can provide turn-key services for customers, from plant layout, equipment manufacturing, production line setup and operators training.
